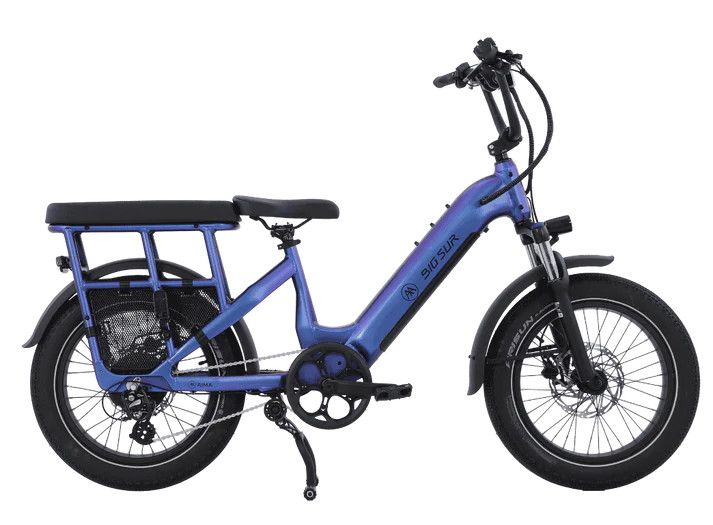

AIMA Big Sur Cargo 15A

The Big Sur Cargo represents a more fun and efficient alternative to a car for everyday errands and commutes around town. Very capable, thanks to its powerful UL certified Bafang power system, this E-Bike can handle a lot, plus whever the destination is, it allows to skip traffic and the hassle of searching for parking. A wide range of accessories for safely carrying passengers and cargo is available.

Frame: Unique Cargo Step-Thru Hydroformed Aluminum alloy frame, Integral Smooth Welding, Internal Cable Routing,Integrated bearings, 100mm BSA, Custom Forged Rear Dropouts, Built-in LED Rear light / Brake / Turn Signal lights (remotely controled)

Fork: Zoom, 80mm travel Suspension Fork, Locking Lever, Spring Preload AdjustmentStem: Forged Alloy, 1-1/8” Threadless

Handlebar: Alloy, High Riser, Ø31,8mm, Width: 680mm

Grips: Comfort Ergo, Bolt-On

Seatpost: Alloy, Ø30.4mm Quick Release clamp

Saddle: Comfort, Integrated Springs and Lifting Handle

Shifters: Shimano Acera ST-M315, Rapidfire, 7 Speeds

Derailleur: Shimano Altus RD-M310, with Protecting Cage

Chainring: Direct Mount, Splined alloy spider, 52T

Cassette: Shimano HG, Megarange 11-32T

Chain: PYC, 1/2” x 3/32”

Pedals: Alloy, 9/16’’

Brakes: Tektro HD-E3520, Hydraulic Disc Brakes,with Power cut-off sensor

Rotors: Stainless Steel TR-52 Anti Vibration 203mm 6-Bolt rotors

Rims: 20’’, 36H, Wide Profile, Alloy, Schrader

Hubs: Front: Alloy, 135mm, Bolt-On, 6-Bolts Disc Mount, Rear: (See Motor)

Spokes: 12G Stainless Steel, Black

Tires: 20 x3.5’’, Reflective Side Strips, E-Bike Rated Casing

Driving Lights: (Front): Fork-mounted white driving light, 600 lumens (Rear): Built-in braking light / Blinkers

Accessories: Fenders, Double-legged Central Alloy Kickstand, Cargo Carrying

Listed Weight: 80 lbs (36 kg)

Max Payload: 400 lbs (180 kg)
